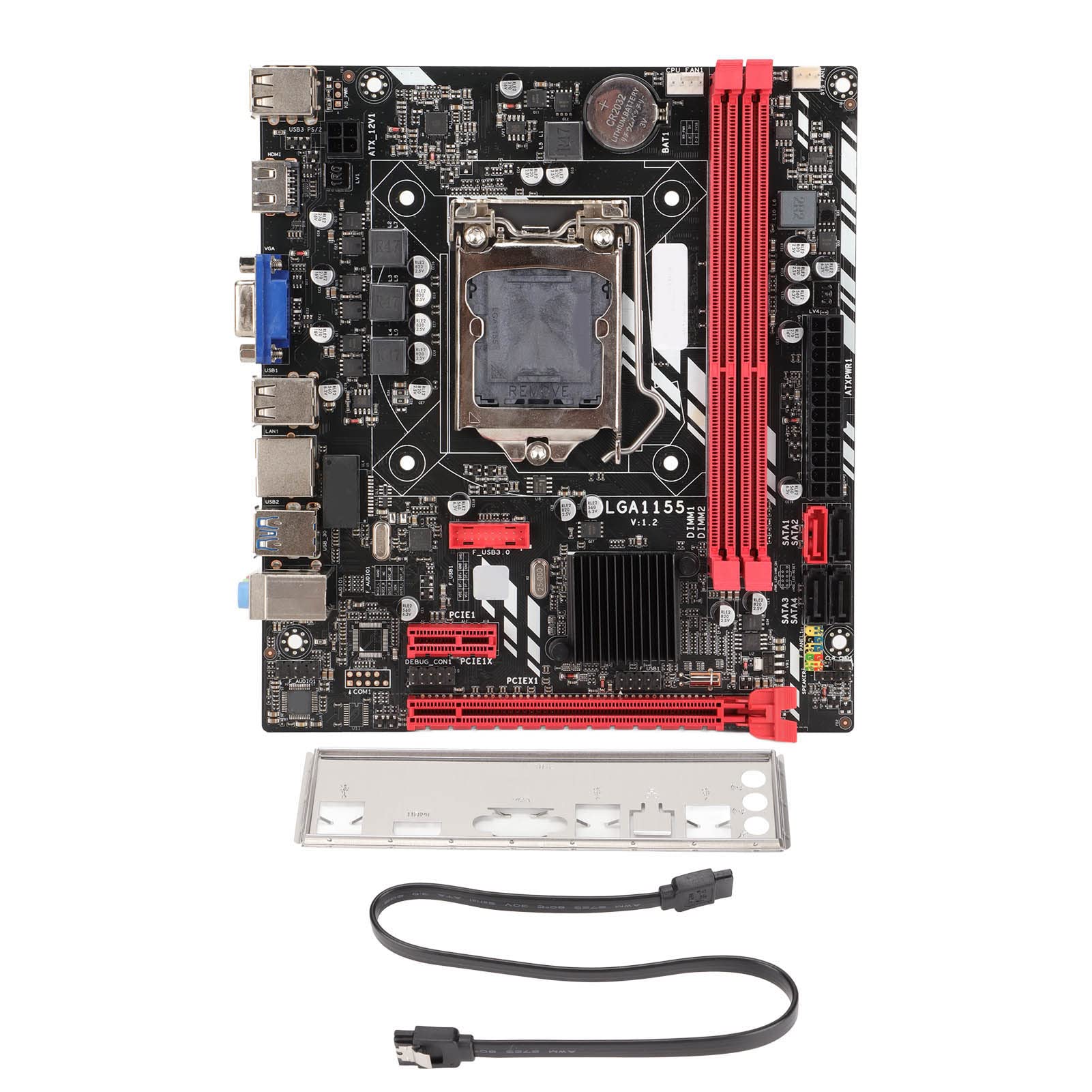

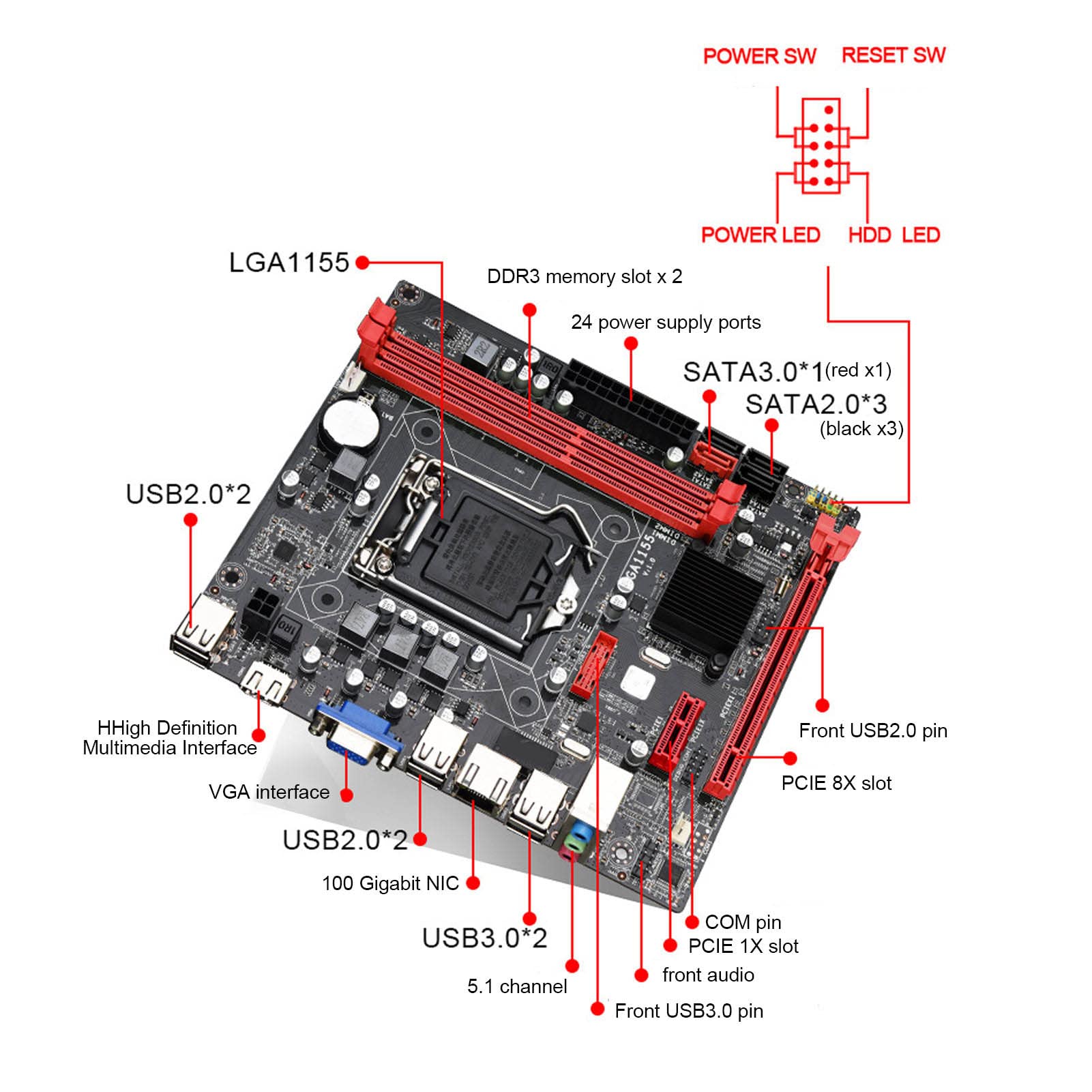

Specification: Item Type:Motherboard Material: PCB Model: B75M Motherboard Architecture: M ATX Size: Approx. 190 x 170mm / 7.5 x 6.7in CPU Socket Type: LGA 1155 Front Side Bus Frequency: 1333 (MHz) Net Card: 100M Net Card Graphics Card Slot: PCIE 8Xx1 Supported Memory Type: DDR3x2 SATA Interface: SATA3.0x1, SATA 2.0x3 USB Interface: USB3.0x2+USB2.0x4+Front USB3.0 pin x1+Front USB2.0 Pin x1 Sound Card: ACL662 5.1 Channel Maximum Memory Capacity: 16GB Power Connector: 24 Pin x1, 4 Pin x1 Expansion Interface: VGA, High Definition Multimedia Interface, PCIE 1Xx1, COM Pin x1 Battery Type: CR2032 Button Battery (Ship with Inbuilt Battery) Battery Capacity: 240mAh Applicable: Desktop The motherboard is fixed in the host case, and then connected in accordance with the corresponding marked connectors. Non power on problem: When the device does not power on and the power indicator does not light up, make sure the power supply is connected and working properly. If your CPU fan is installed correctly, you can also determine whether the power supply is working properly by judging whether the fan can work properly 1. Confirm the power supply of the power adapter a. Please check the connection of the power cord and whether the socket is plugged in as shown below. If there is a main power switch on the extension cord, please make sure it is on state. b. Replacing the extension cord and socket will help solve the problem. Verify that the motherboard power supply is properly connected. Package List: 1 x Motherboard 1 x SATA Cable 1 x Baffle

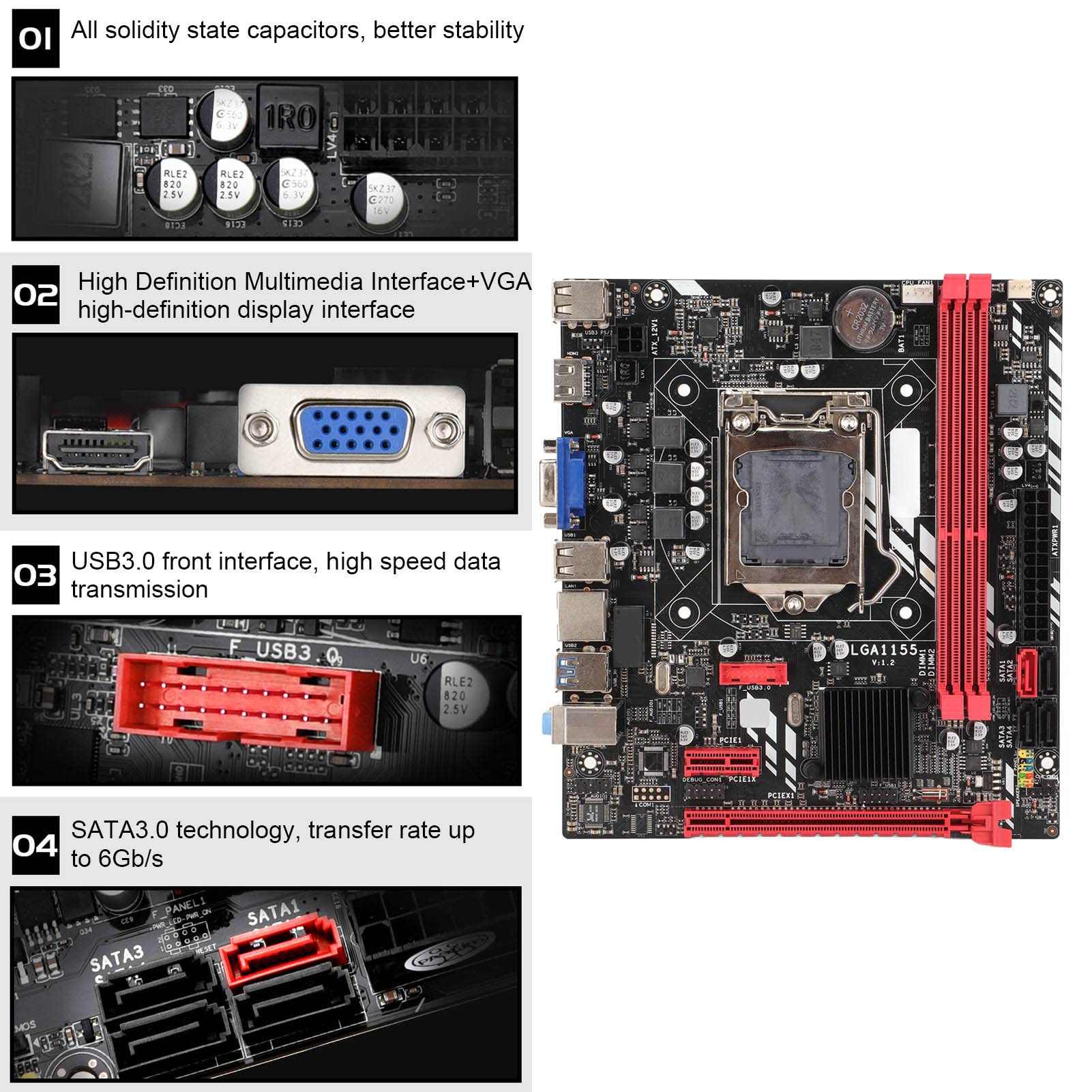

6Gb/s Transmission Rate USB3.0 front interface, high speed data transmission, SATA3.0 technology, transmission rate up to 6Gb/s, fast net speed, more convenient to use.
Display Interface High Definition Multimedia Interface and VGA high definition display interface, PCIE 1x8X graphics card slot, support 2xDDR3 memory type.
Two Power Ports Motherboard has 4pin power port and 24pin power port, three phase power supply mode. Good compatibility and expansion space, does not occupy system memory.

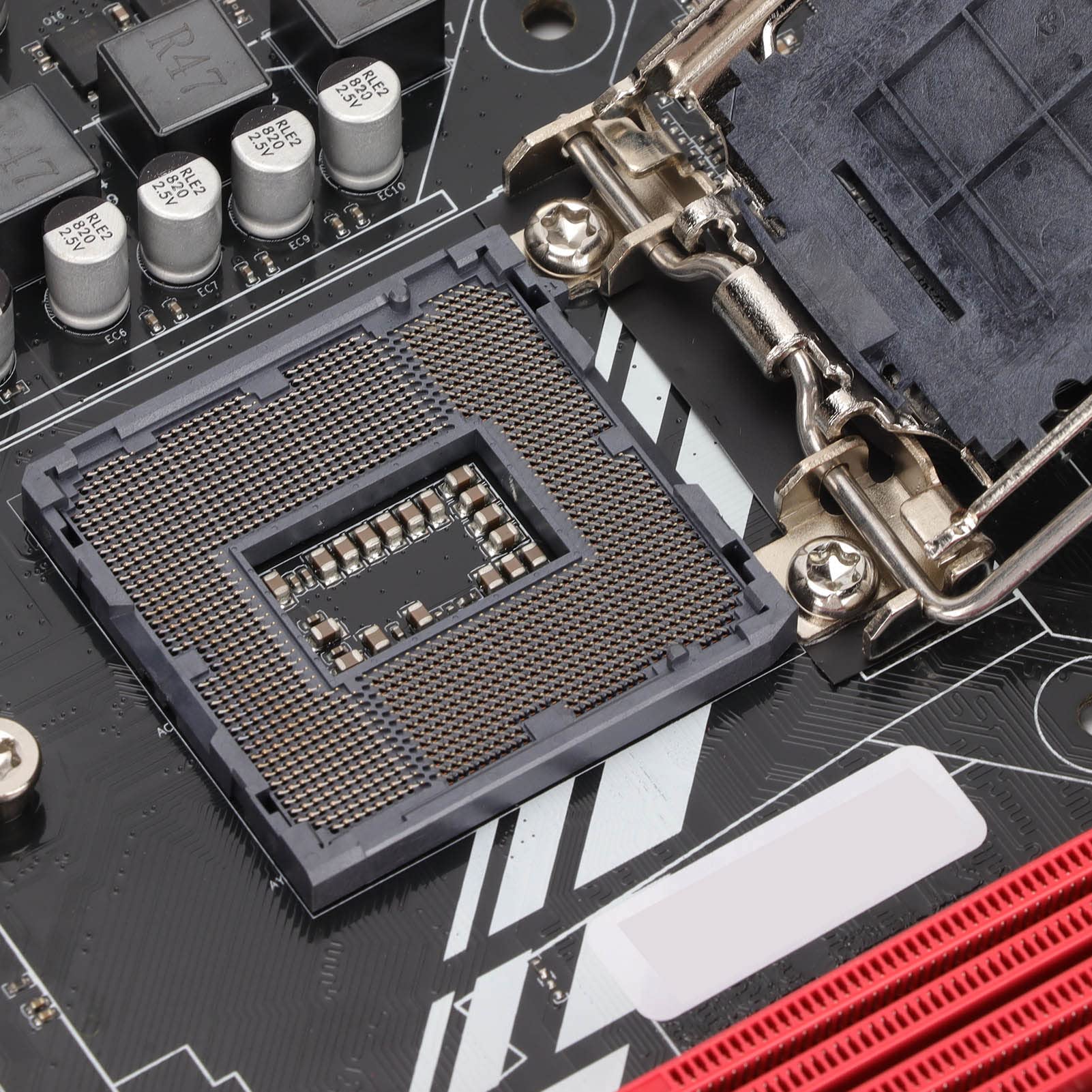

All Solidity State Capacitors Computer motherboards use all solidity state capacitors, with better stability and performance, support for LGA 1155 pins for Intel core I3 I5 I7 computer motherboards.
16GB Memory Capacity Motherboard has a maximum memory capacity of 16GB, which helps you store more things. It is made of PCB material and has stable performance.
