74075121

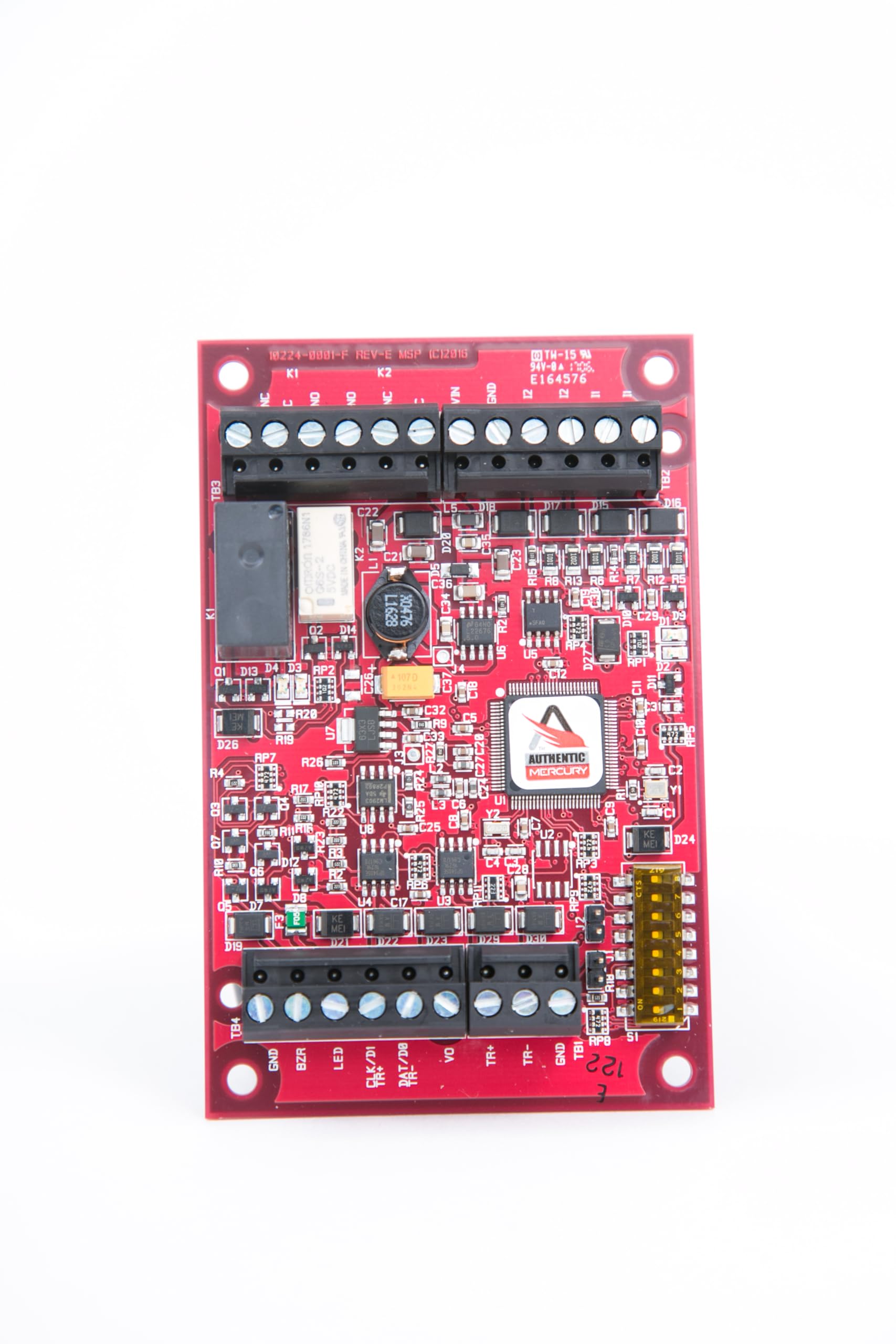

The high-performance MR50 Controller is an ideal choice for a compact and economical single-card reader interface panel. It is RS-485 connected and can be clustered or distributed depending on the installation requirements. The board is easy to install and supports OSDP, Wiegand, clock and data, magnetic stripe, F2F, Supervised F2F, keypad and biometric reader technologies.
1 Reader Port (supports up to 2 OSDP readers)
Card/Keypad Data OSDP, Clock/Data, Data–1/Data–0, RS-485 or F/2F
Control of 1 Door
3 Inputs 2 General Purpose, 1 Dedicated Tamper
2 Relays 1 x NO 5A @ 30VDC or NC 3A @ 30VDC, 1 x 2A @ 30VDC
Easily connects to HID Mercury’s intelligent controllers
Provides all I/O needed for single door control
Comprises a small footprint for versatility
